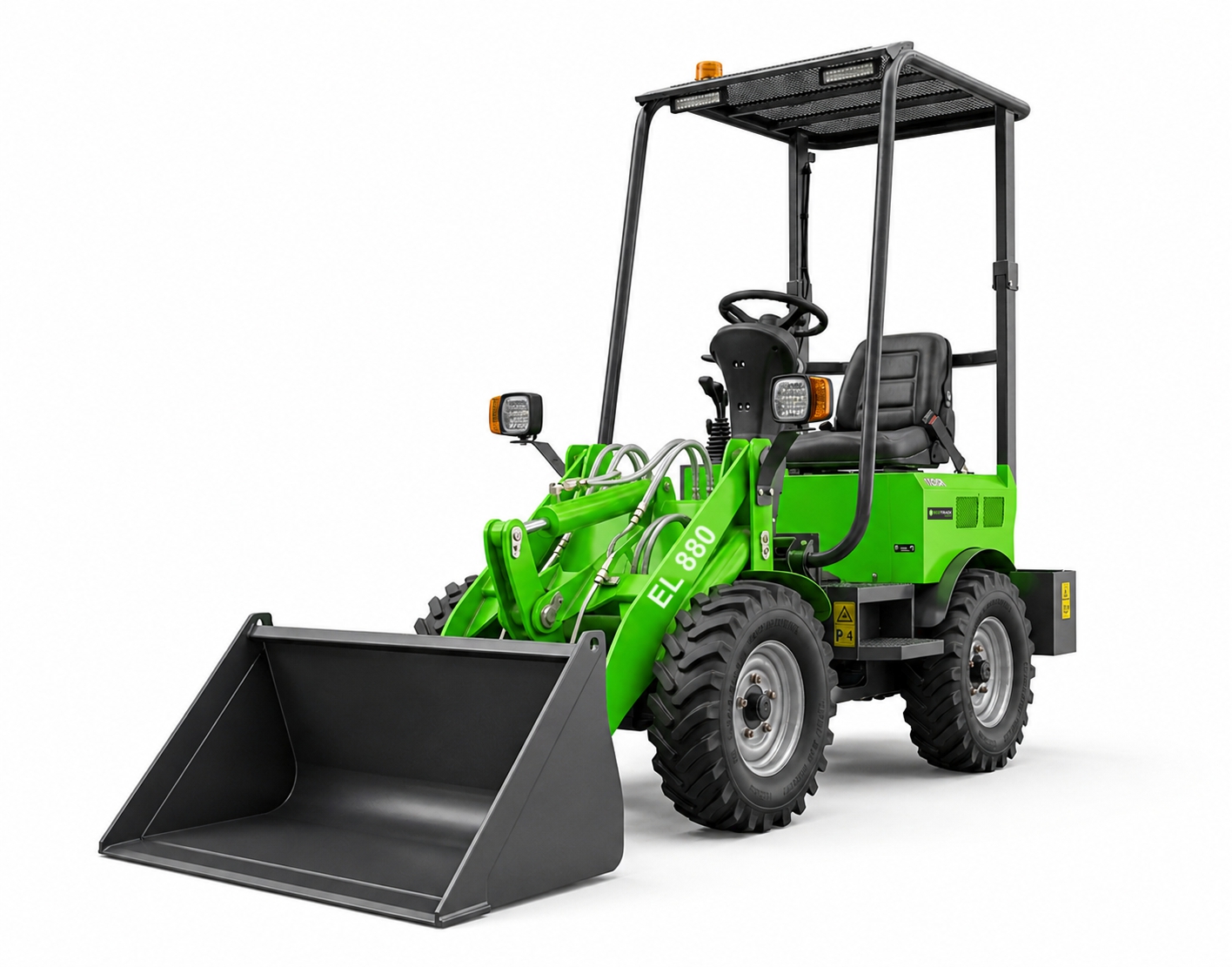

EcoTrack - Electric Front End Wheel Loader - EL880

EL 880 – Electric Mini Articulated Tractor

The Compact Powerhouse

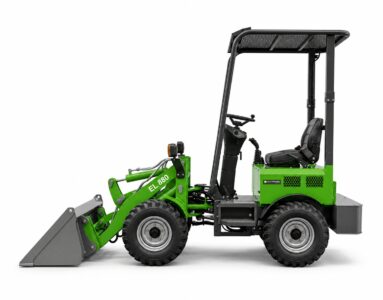

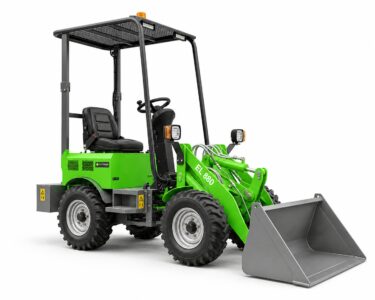

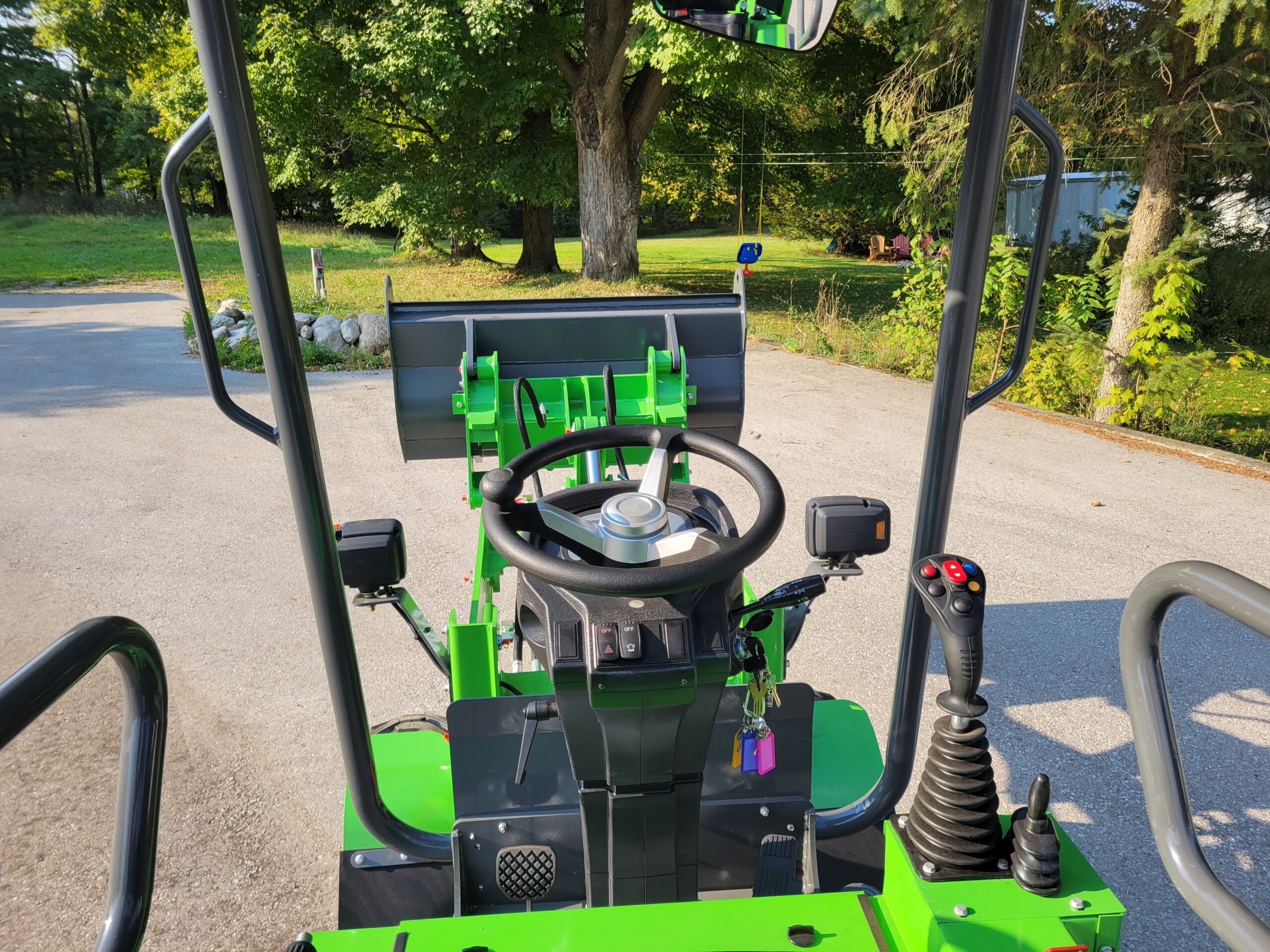

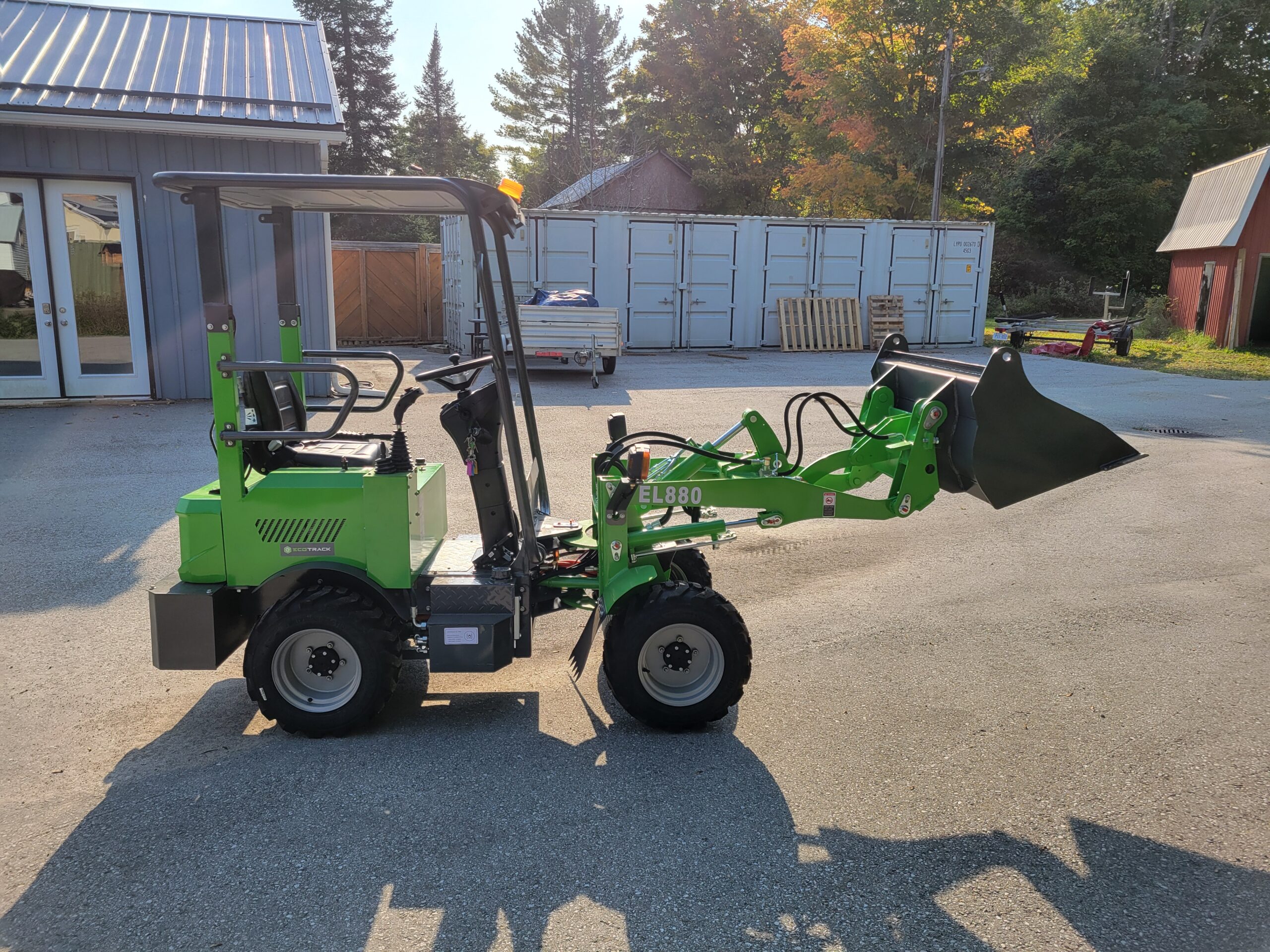

Introducing the EL 800 all electric mini articulated front end wheel loader that works like a mini tractor.  This is smallest model in our lineup, but don’t let its size fool you. This machine has a quick hitch for changing attachments without leaving the cab, easy to use joystick for various functions, and a read hitch for pulling loads or accessories.   Designed for precision, efficiency, and sustainability, the EL 800 is a testament to the power of compact electric machinery. With an 8′ turning radius the machine is perfect for tight spaces and indoor projects. This mini electric wheel loader combines eco-friendly operation with the muscle needed to tackle a variety of tasks. Its compact dimensions and zero emissions make it ideal for landscaping, small construction projects, and agricultural tasks where maneuverability and environmental responsibility are key. Experience the future of compact loading with the EL 800, where size meets power.

Front End Loader www.ecotrackequipment.com

USD $11,850.*

Front End Loader www.ecotrackequipment.com Cash Sign

CAD $16,800.*

Quick Specifications

Fork lift SVG www.ecotrackequipment.com electric front end loader

Rated Load

880 lbs (400 kg)

Front End Loader www.ecotrackequipment.com

Bucket Capacity

0.26 yd³ - 53 gal (0.20 m³)

Front End Loader www.ecotrackequipment.com

Bucket Width

3.4 ft (1040 mm)

Front End Loader www.ecotrackequipment.com

Lift Height

7 ft  (2160 mm)

Front End Loader www.ecotrackequipment.com

Overall Weight

2,470 lbs (1120 kg)

Front End Loader www.ecotrackequipment.com

Wheelbase

4.4 ft (1330 mm)

Front End Loader www.ecotrackequipment.com

Ground Clearance

 7.8 in (200 mm)

Front End Loader www.ecotrackequipment.com

Max. Speed

6 -11 mi/h (10-18 km/h)

Front End Loader www.ecotrackequipment.com

Electrical System

12 V

Front End Loader www.ecotrackequipment.com

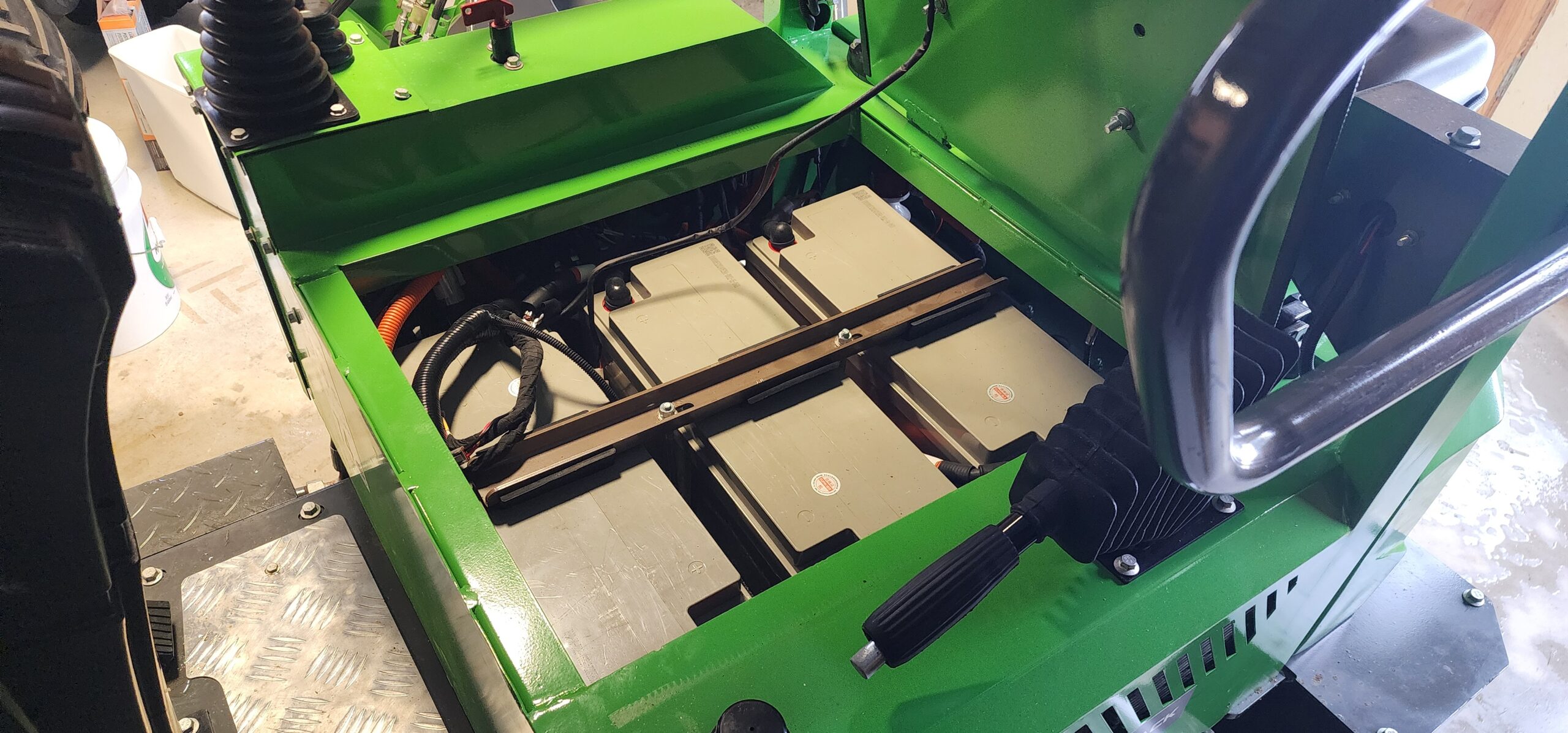

Battery Type

Main Free Lead-Acid

Front End Loader www.ecotrackequipment.com

Runtime

6 hrs

Front End Loader www.ecotrackequipment.com

Charge Time

8 hrs

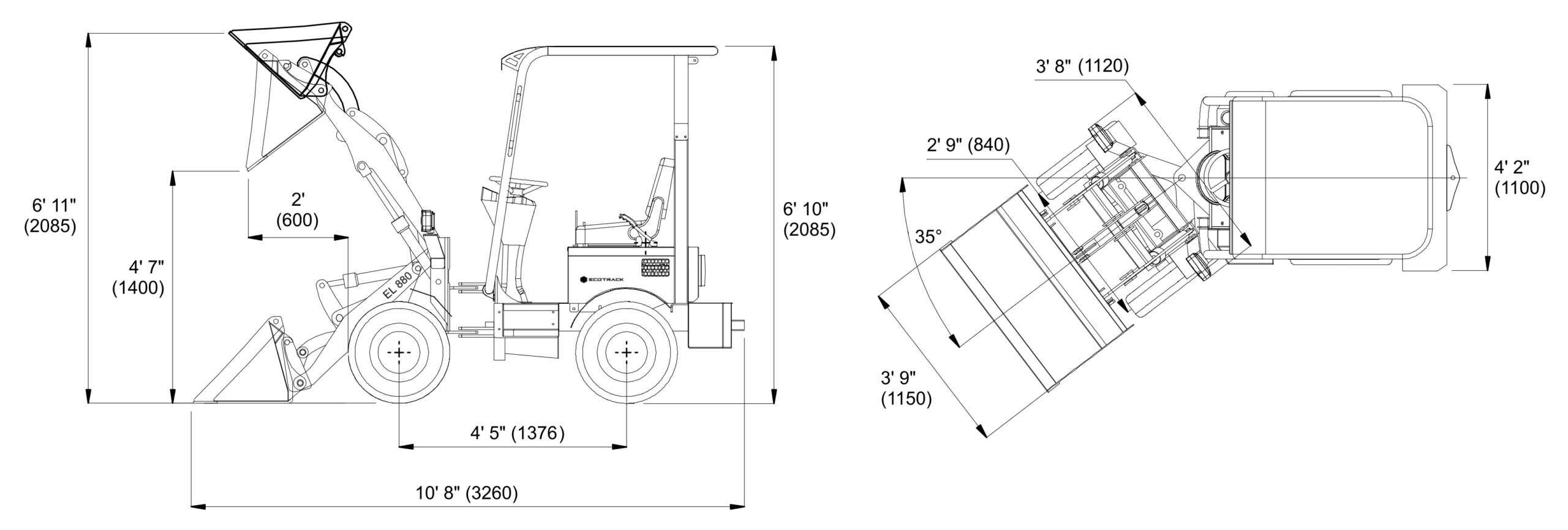

ELT 880 DIMENSIONS

EcoTrack EL 880 Dimensions Drawing B

Item

Imperial

Metric

A - Length

10' 9"

3280 mm

B - Height

6' 9"

2050 mm

C - Bucket Max Up

6' 11"

2100 mm

D - Bucket Up

4' 7"

1400 mm

E - Bucket Travel

2'

600 mm

F - Tire Span

4' 5"

1376 mm

G - Bucket Width

3' 9"

1150 mm

H - Turn Angle

45 °

45 °

I - Tire Centers

2' 9"

840 mm

J - Light Width

3' 8"

1120 mm

K - Width

4' 2"

1100 mm

R - Turning Radius

7'

2130 mm
