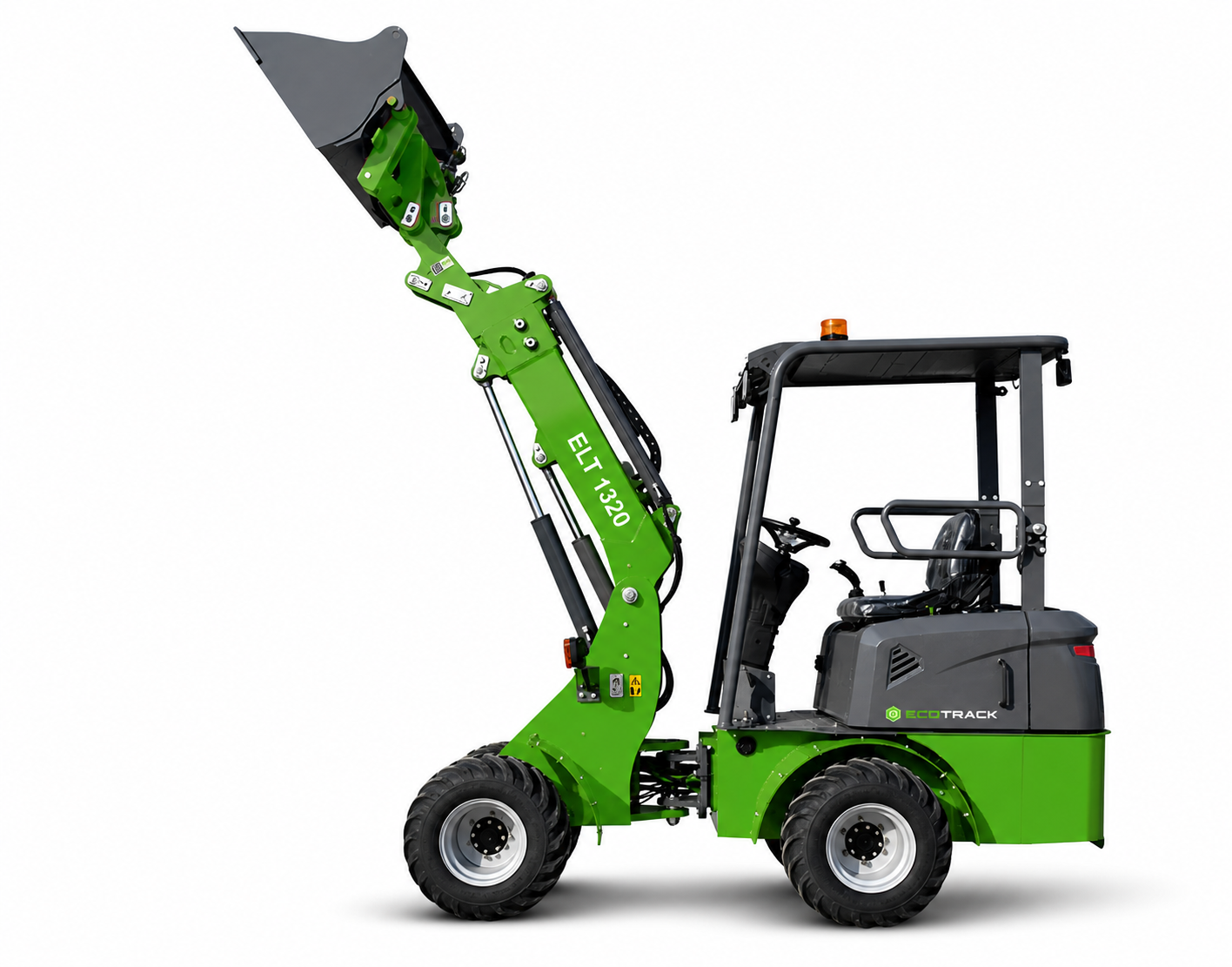

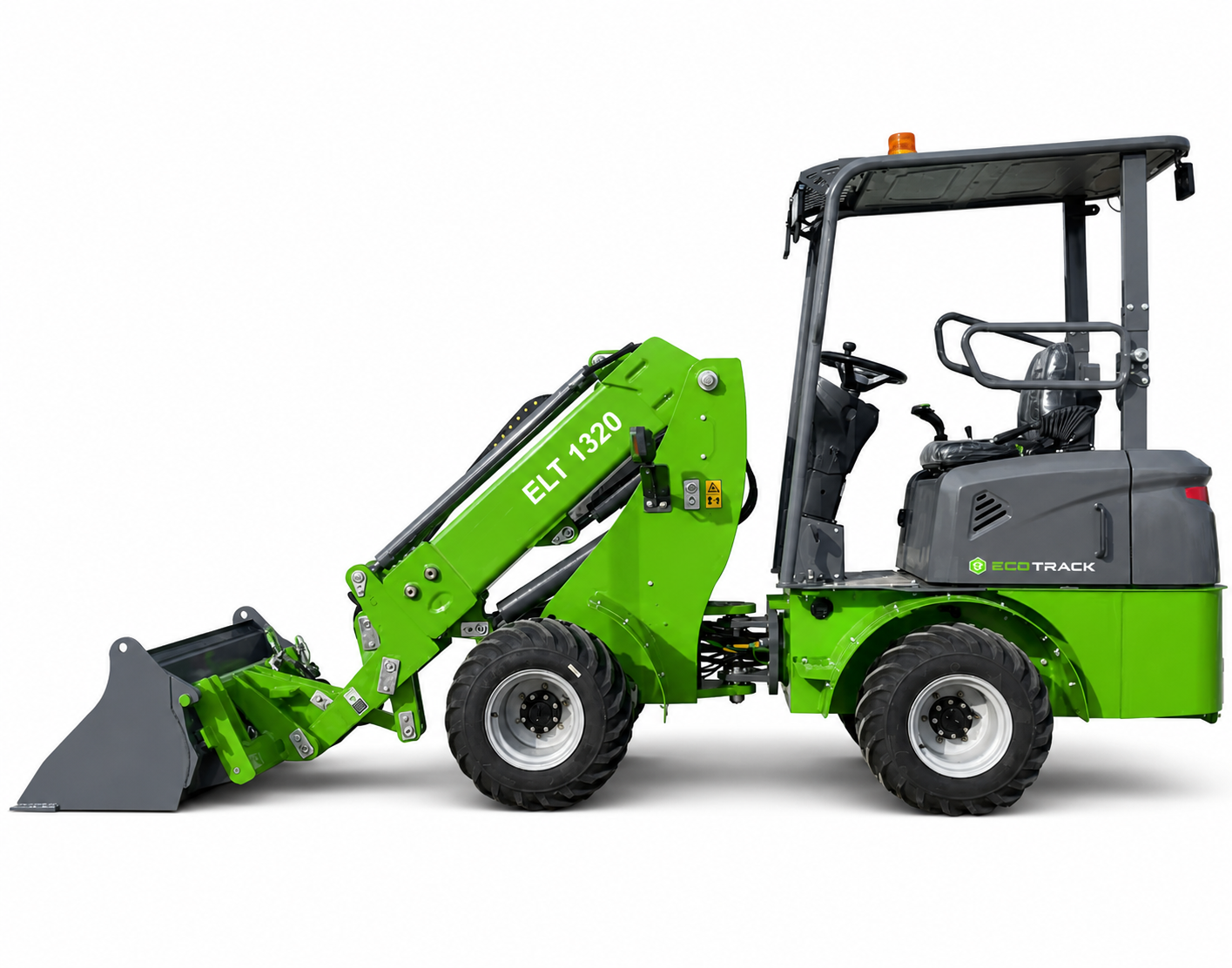

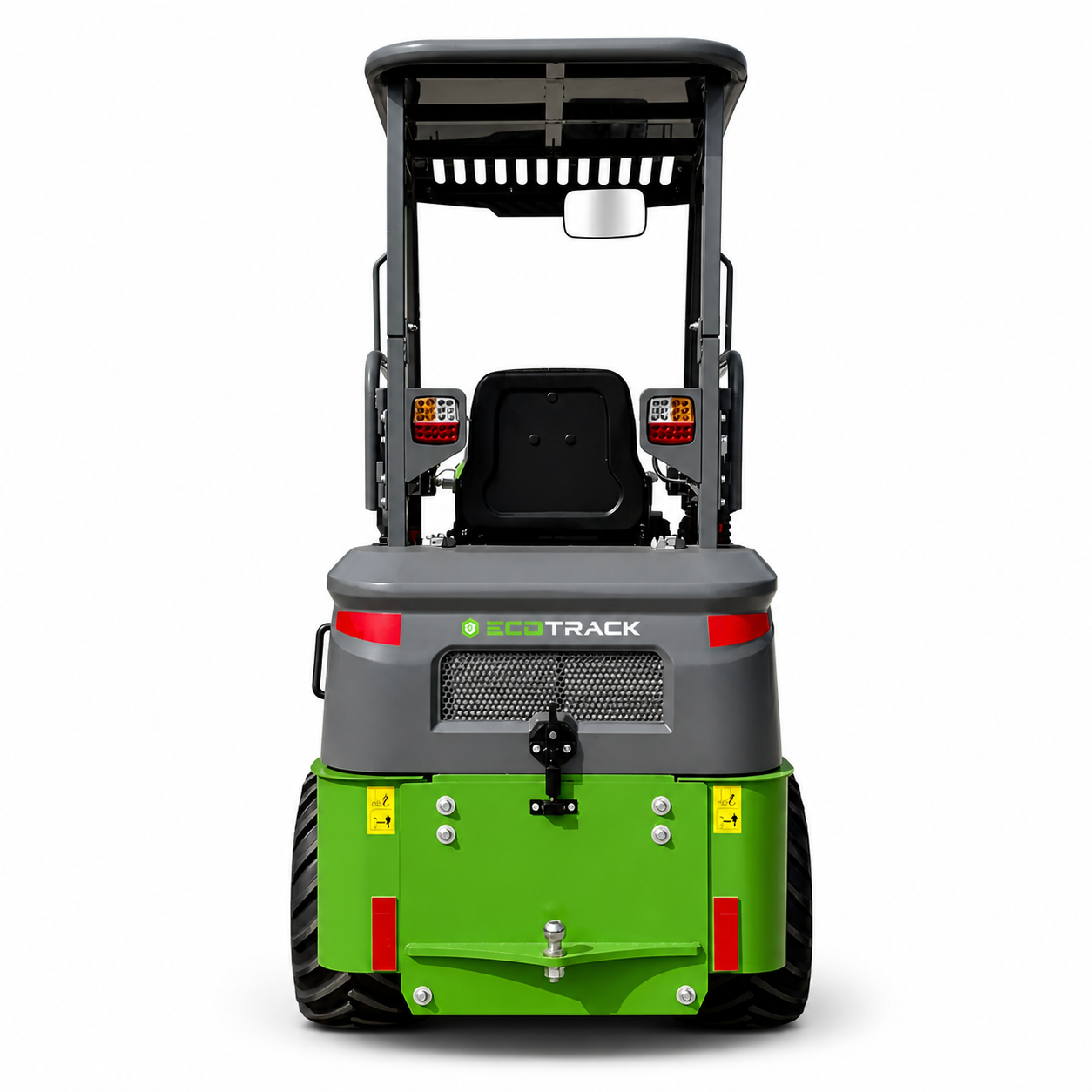

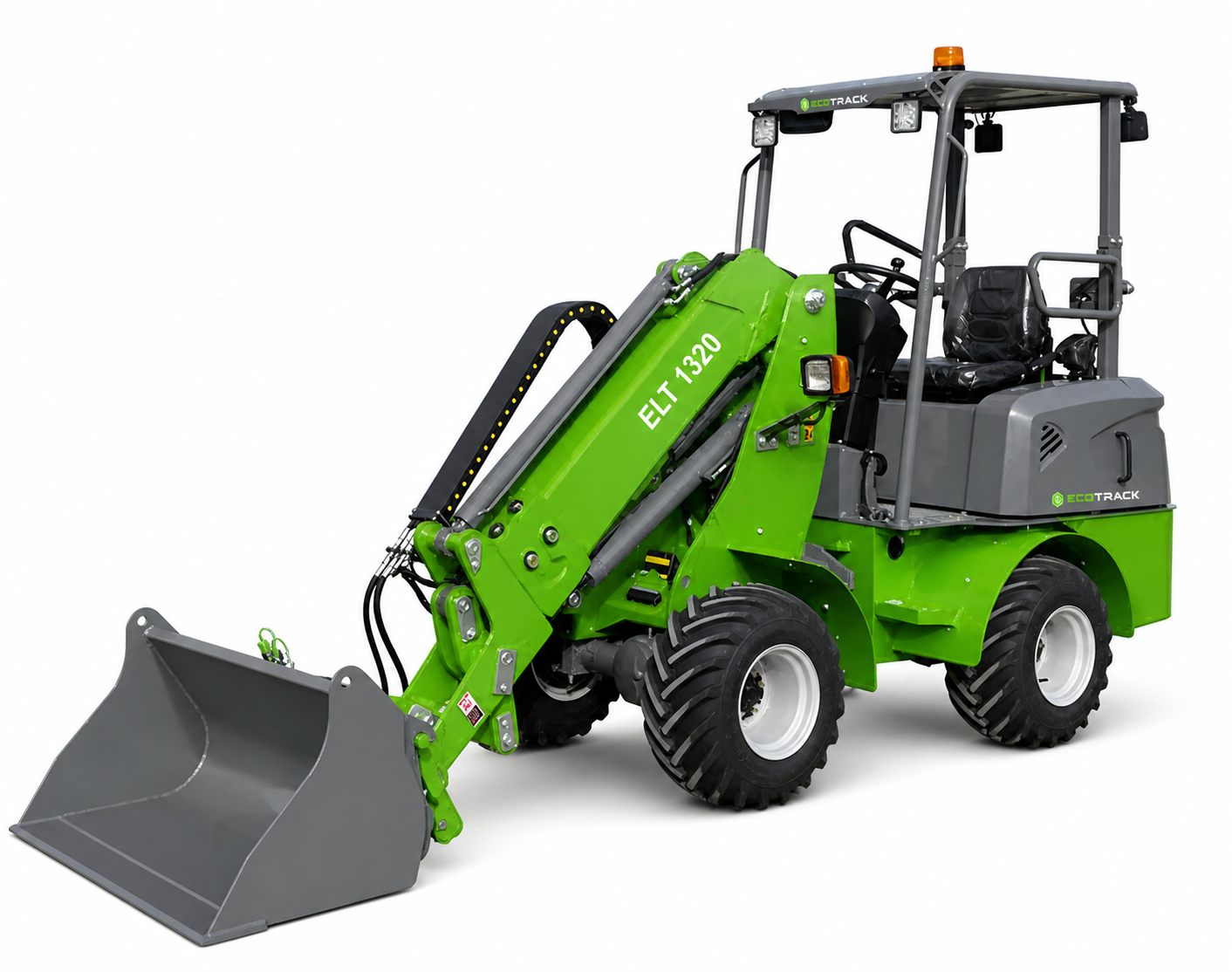

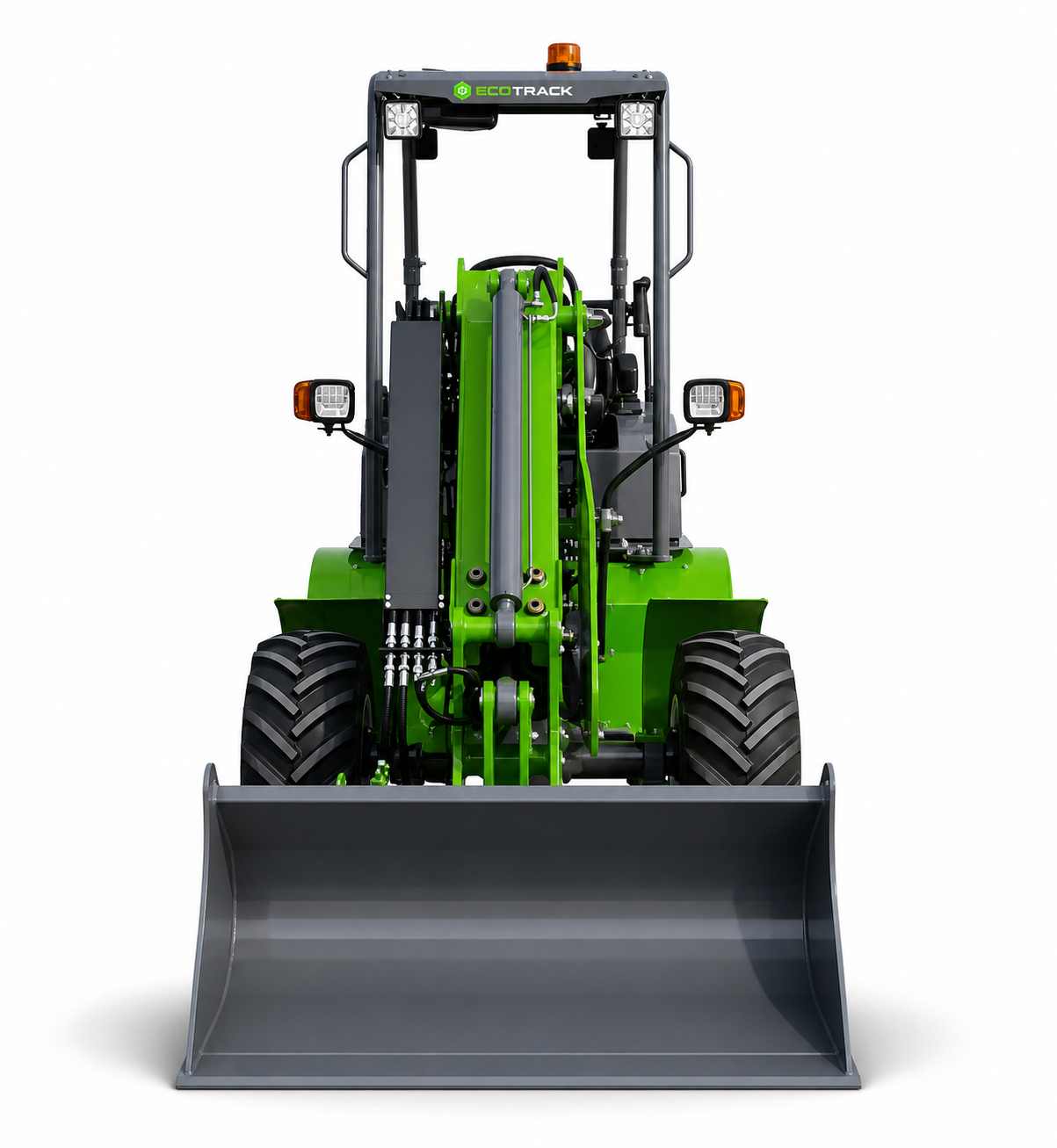

Canadian EcoTrack Electric Compact Telescopic Front End Wheel Loader, 1320 lb Load Capacity, 8’ Turning Radius, Joystick Control, Includes Standard Bucket, ELT 1320
$33,900
The Ultimate Workhorse
Introducing the ELT 1320, the most versatile model in our EcoTrack Electric Articulated Telescopic Front End Wheel Loader Series. Built for demanding tasks that require lifting power and extended operation, the ELT 1320 stands out with its unmatched capacity and endurance. This model is designed to meet the needs of larger construction projects, waste management, and any application where performance and sustainability go hand in hand. With its advanced electric drive, the ELT 1320 offers exceptional efficiency, reduced operating costs, and minimal environmental impact, all while providing the high-level performance expected from larger machinery. Embrace the power of electric with the ELT 1320 and redefine what’s possible in heavy-duty tasks. We are a Canadian-owned and operated company.
-
Ease of use: Quick attach and detach mechanism for
easy installation and removal. -
Operational Versatility: Capable of drilling holes in
various soil conditions, including clay, sand, and rocky terrains. Suitable for
a range of tasks such as fence post installation, tree planting, and soil
sampling. -
Environmentally friendly: Low noise and zero
emissions operation, ideal for use in noise-sensitive and environmentally
regulated areas. -
Durability and Build Quality: Robust construction to
withstand harsh working conditions. Corrosion-resistant coatings to protect
against rust and wear.
Quick Specifications
Rated Load
1,323 lbs (600 kg)
Bucket Capacity
0.33 yd³ - 66 gal (0.25 m³)
Bucket Width
3.7 ft (1115 mm)
Lift Height
12.8 ft (3918 mm)
Overall Weight
4,663 lbs (2115 kg)
Wheelbase
4.5 ft (1380 mm)
Ground Clearance
7.8 in (200 mm)
Max. Speed /hr
6 -12 mi/h (10-20 km/h)
Electrical System
12 V
Battery Type
Main Free Lead-Acid
Runtime
6 hrs
Charge Time
8 hrs
ELT 1320 DIMENSIONS
|
Item |
Imperial |
Metric |
|---|---|---|
|
A - Length |
14' 1" |
4290 mm |
|
B - Height |
7' 5" |
2250 mm |
|
C - Bucket Max Up - Extended |
12' 10" |
3918 mm |
|
C1 - Bucket Down - Extended |
11' 4" |
3440 mm |
|
D - Bucket Up Max |
10' 2" |
3099 mm |
|
D1 - Bucket Down |
8' 7" |
2618 mm |
|
E - Bucket Travel |
3' 1" |
1254 mm |
|
E1 - Bucket Travel |
2' 6" |
772 mm |
|
F - Tire Span |
4' 6" |
1380 mm |
|
G - Bucket Width |
3' 9" |
1150 mm |
|
H - Turn Angle |
45 ° |
45 ° |
|
J - Light Width |
3' 11" |
1190 mm |
|
K - Width |
4' 3" |
1290 mm |
|
L - Dumping Angle |
33 ° |
33 ° |
|
R - Turning Radius |
7' |
2130 mm |
At EcoTrack, we believe that clear communication is an essential part of delivering an exceptional customer experience. Throughout the order fulfillment process, we provide regular updates on your order status, including production, preparation, and shipping milestones, so you always know what to expect. Our goal is to provide high-quality, environmentally responsible equipment at a competitive price, delivering outstanding value, reliability, and performance for years to come.
EcoTrack Equipment is shipped from either our primary distribution facility in Cambridge, Ontario, or our Discovery Centre in Berkeley, Ontario. Most orders require approximately 2 to 3 business days for processing, inspection, and shipment preparation. Delivery times vary based on destination, accessibility, and carrier schedules, typically ranging from 1 to 14 business days.

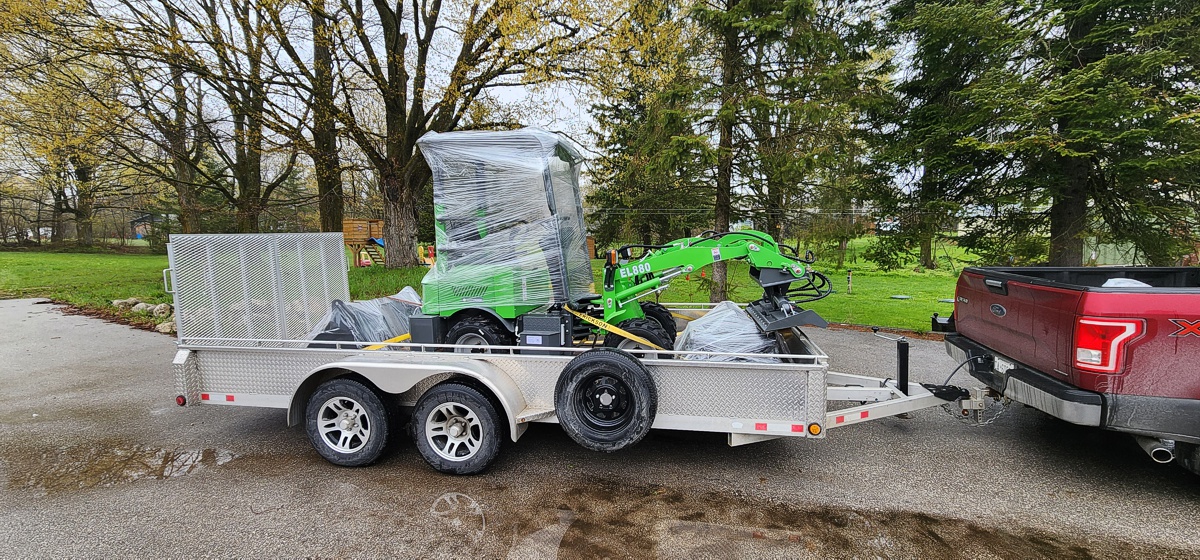

For local deliveries, EcoTrack loaders are typically transported on a tilt-and-load trailer, allowing the machine to be driven directly off the trailer and onto the ground upon arrival. For longer-distance shipments, units are generally transported on a flatbed trailer. In these cases, the customer is responsible for providing suitable unloading equipment, such as a forklift, telehandler, or other machinery with sufficient lifting capacity to safely unload the unit.
EcoTrack can arrange delivery to virtually any location throughout Canada and the United States.
No Hassel Warranty:
At EcoTrack, we understand the importance of reliable equipment. That's why every electric front-end loader we sell comes with a comprehensive one-year warranty designed to give you peace of mind.
What's Covered:
- Battery: We stand behind the performance and quality of our batteries. The warranty covers any defects in materials or workmanship that may arise within the first year.
- Structural Components: The warranty protects against any structural issues with the frame, chassis, and other core components of your electric front-end loader.
- Standard Parts: Our warranty covers a range of standard parts against manufacturing defects.
What's Not Covered:
- Misuse and Overloading: Damage caused by operating the machine beyond its intended capacity or in violation of the user manual is not covered.
- Improper Battery Maintenance: To ensure battery longevity and warranty coverage, regular maintenance as outlined in the user manual is necessary.
- Normal Wear and Tear: The warranty does not cover parts that naturally wear down with use.
Our Commitment to Your Success
We go beyond just warranties. Your success is our priority. Our dedicated customer support team is always available to assist you with any questions, concerns, or maintenance needs throughout your ownership. We'll work diligently to resolve any issues you encounter and ensure your electric front-end loader continues to operate at peak performance.
By investing in an EcoTracks electric front-end loader, you're not just buying a machine; you're gaining a reliable partner committed to your long-term success.
For a complete breakdown of warranty coverage and exclusions, please refer to this link Warranty Policy
